Rached Flanges, located in Tunis, Tunisia, has built a solid reputation as a reliable manufacturer and supplier of 16Mo3 Flanges, specifically designed for high-temperature and high-pressure industrial applications. The company prides itself on precision manufacturing, using top-notch raw materials, and strictly following international standards to guarantee products that are both dependable and long-lasting. With state-of-the-art production facilities and thorough quality control measures in place, Rached Flanges ensures that their flanges boast exceptional dimensional accuracy and consistent performance. Catering to sectors like oil and gas, petrochemicals, power generation, and heavy engineering, the company is well-known for its prompt deliveries, competitive pricing, and trustworthy quality, making it a go-to partner for essential piping solutions around the globe.
16Mo3 Flanges are crafted from molybdenum-alloyed carbon steel, which provides outstanding mechanical properties and thermal stability. They exhibit impressive tensile and yield strength, high creep resistance, and reliable toughness even at elevated temperatures. The heat treatment process enhances their hardness, fatigue resistance, and overall structural integrity. Thanks to the molybdenum content, these flanges are better equipped to handle thermal stress and pressure, ensuring they remain durable under challenging operating conditions. These characteristics make 16Mo3 flanges perfect for environments that experience high temperatures and pressures.
| Specifications | 16Mo3 Flanges |
|---|---|
| Coating | Anti-rust Paint/ Zinc Plated/ Oil Black Paint/ Yellow Transparent/ Cold and Hot Dip Galvanized |
| Manufacturer of | Forged/ Threaded/ Screwed / Plate |
| Manufacturer Length | NPS 1⁄₂” Inch To NPS 48” Inch |
| Face Type | RTJ/ RF/ FF |
| Schedule Chart | SCH 5S To XXS. |
| Vishal Steel Manufacturer Belbow Types | Weld Neck/ Socket Weld/ Threaded/ Reducing/ Lap Joint/ Blind/ Slip On |
| Forging Methods | Forging & Casting, Rolling & Cutting |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Application | Bitumen upgraders Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids. |
| JIS Standard | 5K/ 10K/ 16K 20K/ 30K/ 40K/ 63K |
| Flange Test | Hydrostatic testing machine/ UI trasonic flaw detector/ X-ray detector/ Direct-reading Spectrograph/ Magnetic particle detector |
| Supporting Material | Gasket/ Ring Joint/ Flange Bolts |
| Production Technique | Forged/ Heat treated and machined |
| Packing | Plywood Pallet And Plywood Box |
| Brand | Vishal Steel |
| Productivity | 800 ton per month |
| Transportation | Ocean And Air |
| Supply Ability | 700 Ton Per Month |
| Flange Equipment | Pushing Machine/ electric bevelling machine/ Press machine/ Bending machine/ Sand-blasting machine etc |
Element | Percentage % | Element | Percentage % |
P | 0.025 | V | – |
S | 0.010 | Al | – |
Cr | 0.030 | N | 0.012 |
Mo | 0.25/0.35 | Cu | 0.30 |
C | 0.12/0.20 | Ni | 0.30 |
Si | 0.35 | Nb | – |
Mn | 0.40/0.90 | Ti | – |
| 16Mo3 Flanges | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation in 100-150 mm(%) | Maximum Thickness (mm) | Elongation in 16 mm(%) |
| 440-590 | 220-275 | 19 | 250 | 24 |
DIN,WNr | BS | UNI | ISO | DIN | UNS |
16Mo3 | 240 | 16Mo3 | P26 | 1.5415 | K11562 |
243 | TS26 |
| Grade | Thickness | Temperature (°C) | |||||||||
50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | ||
(mm) | MPa | MPa | MPa | MPa | MPa | MPa | MPa | MPa | MPa | MPa | |
| 16Mo3 Flanges | ≤16 | 273 | 264 | 250 | 233 | 213 | 194 | 175 | 159 | 147 | 141 |
>16 ≤40 | 268 | 259 | 245 | 228 | 209 | 190 | 172 | 156 | 145 | 139 | |
>40 ≤60 | 258 | 250 | 236 | 220 | 202 | 183 | 165 | 150 | 139 | 134 | |
>60 ≤100 | 238 | 230 | 218 | 203 | 186 | 169 | 153 | 139 | 129 | 123 | |
>100 ≤150 | 218 | 211 | 200 | 186 | 171 | 155 | 140 | 127 | 118 | 113 | |
>150 ≤250 | 208 | 202 | 191 | 178 | 163 | 148 | 134 | 121 | 113 | 108 | |

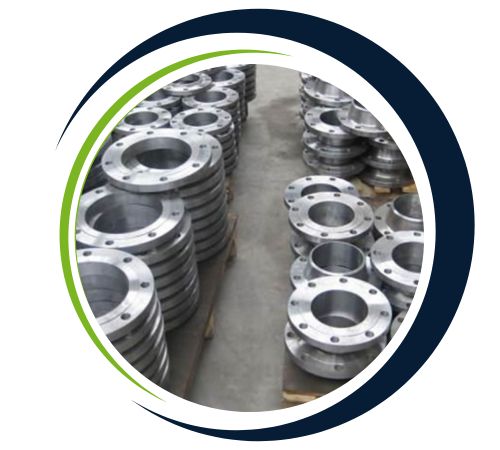

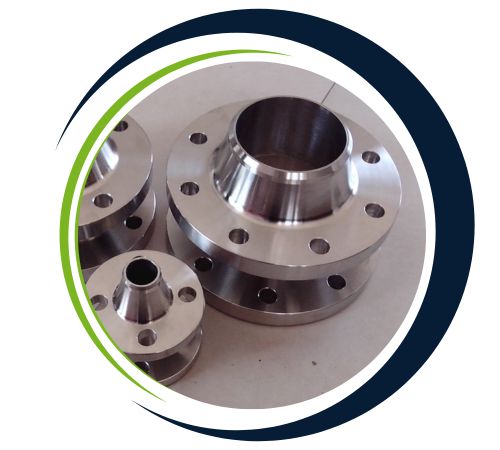

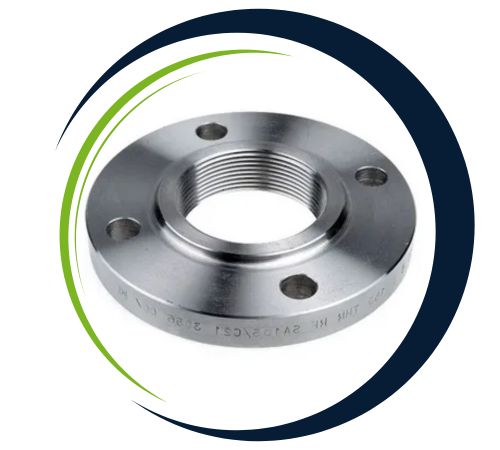

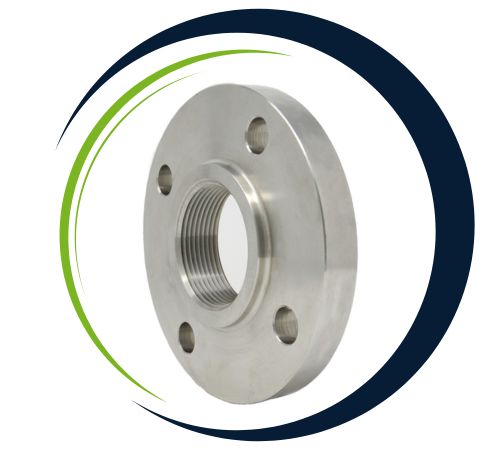

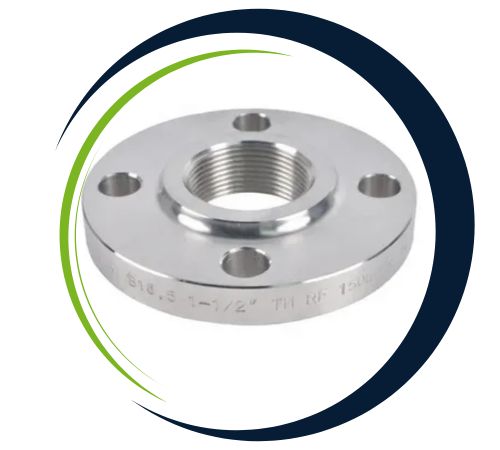

Rached Flanges, a leading supplier in Tunis, Tunisia, offers an extensive selection of 16Mo3 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
You’ll find 16Mo3 Flanges commonly used in high-temperature and high-pressure piping systems, especially in power plants, refineries, and petrochemical facilities. They are often utilized in applications such as boilers, heat exchangers, pressure vessels, steam pipelines, and industrial furnaces. These flanges create secure, leak-proof connections while maintaining their strength during thermal cycling and mechanical loads. With their excellent creep resistance and thermal stability, 16Mo3 flanges are ideal for long-term use in demanding environments, ensuring safety, efficiency, and reliability in critical industrial operations.
| Normal Pipe Size | DN |
|---|---|
| 1/2 | 15 |
| 3/4 | 20 |
| 1 | 25 |
| 1 1/4 | 32 |
| 1 1/2 | 40 |
| 2 | 50 |
| 2 1/2 | 65 |
| 3 | 80 |
| 4 | 100 |
| Flanges Size inches | Flanges Size millimeter | Outer Diameter (O.D.) inches | Outer Diameter (O.D.) millimeter | Inner Diameter (I.D.) inches | Inner Diameter (I.D.) millimeter | Ø B.H.C. In inches | Ø B.H.C. In millimeter | Ø B.H. inches | Ø B.H. millimeter | # B.H. | Thickness inches | Thickness millimeter | Weight lbs | Weight Kilogram |
| 8.0 | 200 | 13.39 | 340 | 8.72 | 221.50 | 11.61 | 295 | 0.870 | 22 | 12 | 1.020 | 26 | 21.0 | 9.5 |
| 10.0 | 250 | 15.94 | 405 | 10.88 | 276.40 | 13.97 | 355 | 1.020 | 26 | 12 | 1.140 | 29 | 31.0 | 14.1 |
| 12.0 | 300 | 18.11 | 460 | 12.88 | 327.20 | 16.14 | 410 | 1.020 | 26 | 12 | 1.260 | 32 | 42.7 | 19.4 |
| 14.0 | 350 | 20.47 | 520 | 14.19 | 360.40 | 18.50 | 470 | 1.020 | 26 | 16 | 1.380 | 35 | 62.3 | 28.3 |
| 15.0 | 400 | 22.83 | 580 | 16.19 | 411.20 | 20.67 | 525 | 1.180 | 30 | 16 | 1.500 | 38 | 80.5 | 36.5 |
| 17.0 | 450 | 25.20 | 640 | 18.19 | 462.00 | 23.03 | 585 | 1.180 | 30 | 20 | 1.650 | 42 | 110.3 | 50.1 |
| 19.0 | 500 | 28.15 | 715 | 20.19 | 512.80 | 25.59 | 650 | 1.300 | 33 | 20 | 1.810 | 46 | 141.5 | 64.2 |
| 24.0 | 600 | 33.07 | 840 | 24.19 | 614.40 | 30.32 | 770 | 1.420 | 36 | 20 | 2.050 | 52 | 213.5 | 96.9 |
| Normal Size Of Steel Pipe | Outer Diameter (O.D.) | 10 Schedule | 20 Schedule | 30 Schedule | STD Wall | 40 Schedule | 60 Schedule | EXT Hvy | 80 Schedule | 100 Schedule | 120 Schedule | 140 Schedule | 160 Schedule | XX Hvy |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ½ | 0.84 | 0.083 | … | … | 0.109 | 0.109 | … | 0.147 | 0.147 | … | … | … | 0.188 | 0.294 |
| ¾ | 1.05 | 0.083 | … | … | 0.113 | 0.113 | … | 0.154 | 0.154 | … | … | … | 0.219 | 0.308 |
| 1 | 1.315 | 0.109 | … | … | 0.133 | 0.133 | … | 0.179 | 0.179 | … | … | … | 0.25 | 0.358 |
| 1 ¼ | 1.66 | 0.109 | … | … | 0.14 | 0.14 | … | 0.191 | 0.191 | … | … | … | 0.25 | 0.382 |
| 1 ½ | 1.9 | 0.109 | … | … | 0.145 | 0.145 | … | 0.2 | 0.2 | … | … | … | 0.281 | 0.4 |
| 2 | 2.375 | 0.109 | … | … | 0.154 | 0.154 | … | 0.218 | 0.218 | … | … | … | 0.344 | 0.436 |
| 2 ½ | 2.875 | 0.12 | … | … | 0.203 | 0.203 | … | 0.276 | 0.276 | … | … | … | 0.375 | 0.552 |
| 3 | 3.5 | 0.12 | – | – | 0.216 | 0.216 | – | 0.3 | 0.3 | – | – | – | 0.438 | 0.6 |
| 3 ½ | 4 | 0.12 | – | – | 0.226 | 0.226 | – | 0.318 | 0.318 | – | – | – | – | 0.636 |
| 4 | 4.5 | 0.12 | – | – | 0.237 | 0.237 | – | 0.337 | 0.337 | – | 0.438 | – | 0.531 | 0.674 |
| 5 | 5.563 | 0.134 | – | – | 0.258 | 0.258 | – | 0.375 | 0.375 | – | 0.5 | – | 0.625 | 0.75 |
| 6 | 6.625 | 0.134 | – | – | 0.28 | 0.28 | – | 0.432 | 0.432 | – | 0.562 | – | 0.719 | 0.864 |
| 8 | 8.625 | 0.148 | 0.25 | 0.277 | 0.322 | 0.322 | 0.406 | 0.5 | 0.5 | 0.594 | 0.719 | 0.812 | 0.906 | 0.875 |
| 10 | 10.75 | 0.165 | 0.25 | 0.307 | 0.365 | 0.365 | 0.5 | 0.5 | 0.594 | 0.719 | 0.844 | 1 | 1.125 | 1 |
| 12 | 12.75 | 0.18 | 0.25 | 0.33 | 0.375 | 0.406 | 0.562 | 0.5 | 0.688 | 0.844 | 1 | 1.125 | 1.312 | 1 |
| 14 | 14 | 0.25 | 0.312 | 0.375 | 0.375 | 0.438 | 0.594 | 0.5 | 0.75 | 0.938 | 1.094 | 1.25 | 1.406 | – |
| 16 | 16 | 0.25 | 0.312 | 0.375 | 0.375 | 0.5 | 0.656 | 0.5 | 0.844 | 1.031 | 1.219 | 1.438 | 1.594 | – |
| 18 | 18 | 0.25 | 0.312 | 0.438 | 0.375 | 0.562 | 0.75 | 0.5 | 0.938 | 1.156 | 1.375 | 1.562 | 1.781 | – |
| 20 | 20 | 0.25 | 0.375 | 0.5 | 0.375 | 0.594 | 0.812 | 0.5 | 1.031 | 1.281 | 1.5 | 1.75 | 1.969 | – |
| 22 | 22 | 0.25 | – | – | 0.375 | – | – | 0.5 | – | – | – | – | – | – |
| 24 | 24 | 0.25 | 0.375 | 0.562 | 0.375 | 0.688 | 0.969 | 0.5 | 1.219 | 1.531 | 1.812 | 2.062 | 2.344 | – |
| 26 | 26 | – | – | – | 0.375 | – | – | 0.5 | – | – | – | – | – | – |
| 30 | 30 | 0.312 | 0.5 | 0.625 | 0.375 | – | – | 0.5 | – | – | – | – | – | – |
Yes, we offer custom sizes for 16Mo3 Flanges to meet specific project needs. Our team at Rached Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@rachedflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
