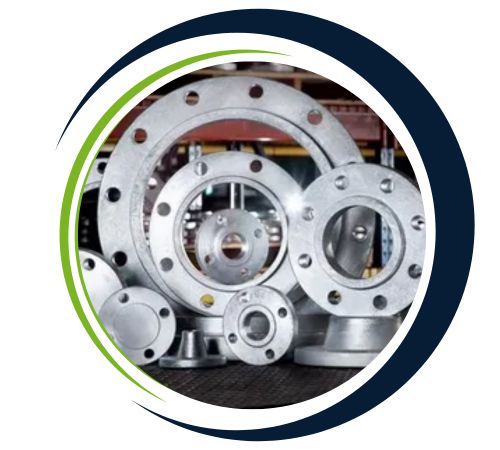

Rached Flanges, located in Tunis, Tunisia, has built a solid reputation as a manufacturer and supplier of ANSI B16.5 Class 300 Flanges. Known for their precision engineering and commitment to international standards, this company provides high-quality flanges that are designed to be durable, safe, and reliable for various industrial applications. They cater to sectors like oil and gas, petrochemical, power generation, and water treatment, blending advanced manufacturing techniques with rigorous quality control. Each Class 300 flange is crafted to handle moderate pressures and temperatures, ensuring leak-proof connections, which makes Rached Flanges a go-to partner for businesses looking for dependable piping solutions around the globe.
The ANSI B16.5 Class 300 Flanges are made from carbon steel, alloy steel, and stainless steel, offering impressive strength, corrosion resistance, and durability. Their chemical makeup adheres to ASTM standards, guaranteeing toughness and a long service life. On the mechanical side, these flanges provide adequate tensile and yield strength, reliable impact resistance, and the capability to function under moderate pressures and temperatures. With precise dimensions and consistent metallurgical properties, ANSI B16.5 Class 300 Flanges ensure secure and leak-proof connections, making them ideal for industrial piping systems where safety, stability, and adherence to international standards are crucial.

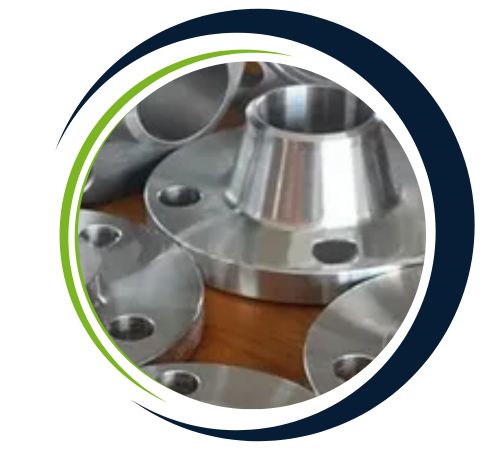

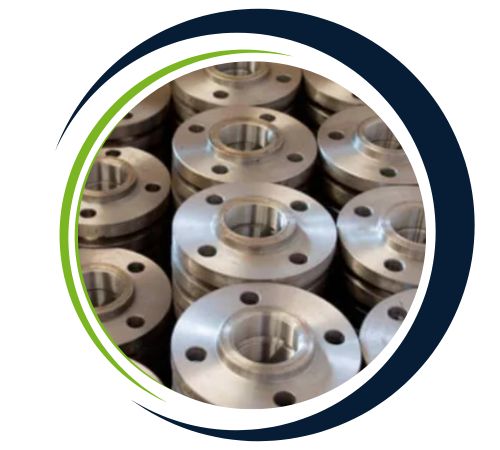

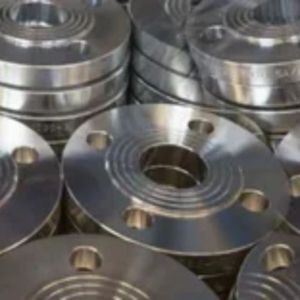

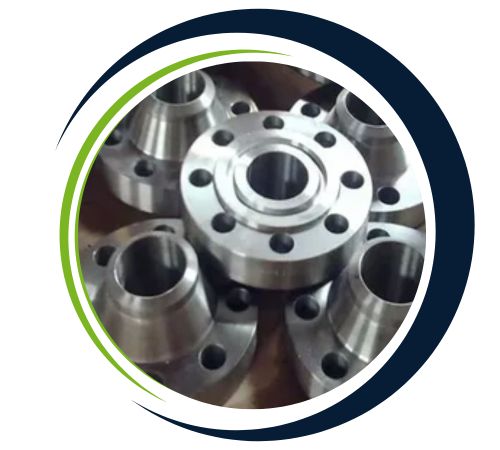

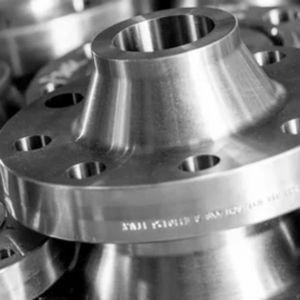

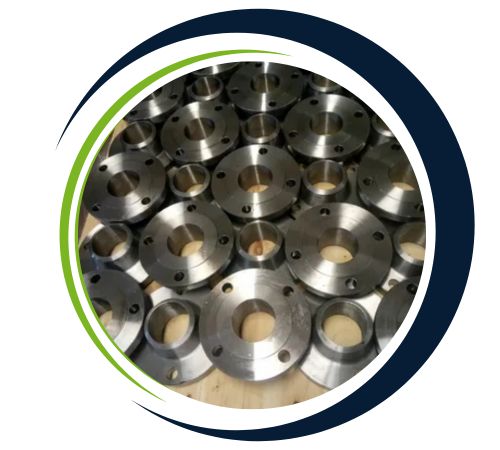

Rached Flanges, a leading supplier in Tunis, Tunisia, offers an extensive selection of ANSI B16.5 Class 300 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Standards | B16.47 Series A & B, ANSI/ASME B16.5, BS4504, B16.48, EN-1092, BS 10, DIN, ANSI Flanges, BS Flanges, ASME Flanges, EN Flanges, DIN Flanges, GOST Flanges. |
| DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |

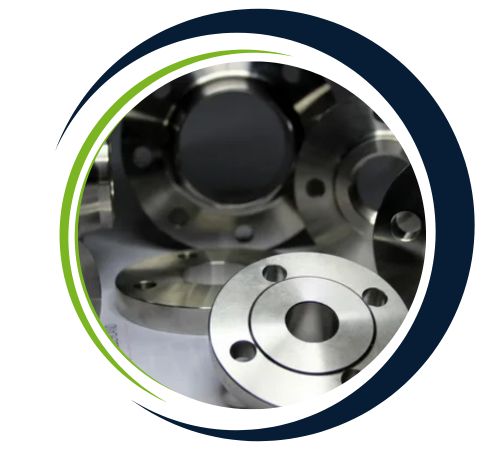

| Main Types | Threaded / Forged / Plate /Screwed |
| Flange supporting material | Ring Joint, Gasket, Flange Bolts |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Most Common Types |
|
| Production technique |
|

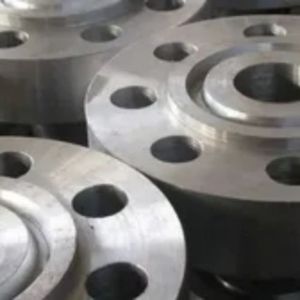

| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF),Large Male-Female (LMF), Flat Face (FF),Small Male-Female (SMF), Lap-Joint Face (LJF), Large Tongue & Groove, Small Tongue, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Class 300 Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Specialized Manufacturer of |
|
| Standard | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange
|
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| CLASS | Nominal Pipe Size | Slip On | Threaded | Socket Weld | Lap Joint | Blind | Weld Neck |
| 300 lb | ½ | 1 | 1 | 2 | 1 | 2 | 2 |
| ¾ | 2 | 2 | 2 | 2 | 2 | 2 | |
| 1 | 2 | 2 | 2 | 2 | 2 | 3 | |
| 1¼ | 3 | 3 | 3 | 3 | 3 | 3 | |
| 1½ | 3 | 3 | 3 | 3 | 4 | 4 | |
| 2 | 5 | 5 | 5 | 5 | 5 | 6 | |
| 2½ | 8 | 8 | 8 | 8 | 7 | 10 | |
| 3 | 9 | 9 | 9 | 9 | 9 | 11.5 | |
| 3½ | 11 | 12 | 11 | 11 | 13 | 12 | |
| 4 | 13 | 13 | 13 | 13 | 17 | 16.5 | |
| 5 | 15 | 15 | 15 | 15 | 20 | 21 | |
| 6 | 19 | 19 | 19 | 19 | 27 | 26 | |
| 8 | 30 | 30 | 30 | 30 | 47 | 42 | |
| 10 | 43 | 43 | 43 | 43 | 70 | 54 | |
| 12 | 64 | 64 | 64 | 64 | 123 | 88 | |
| 14 | 90 | 90 | 90 | 105 | 140 | 114 | |
| 16 | 106 | 98 | 98 | 140 | 180 | 140 | |
| 18 | 130 | 130 | 130 | 160 | 220 | 165 | |
| 20 | 165 | 165 | 165 | 195 | 285 | 197 | |
| 22 | 185 | 185 | 185 | 245 | 355 | 225 | |
| 24 | 220 | 220 | 220 | 275 | 430 | 268 |
These flanges are commonly utilized in industries that require moderate-pressure piping systems. Typical applications include oil and gas pipelines, petrochemical facilities, power generation plants, and water treatment facilities. They create secure connections for pipes, valves, pumps, and other equipment, maintaining system integrity during normal operations. Their sturdy design accommodates thermal expansion, vibration, and moderate loads, ensuring long-lasting reliability. Engineers and designers trust Class 300 flanges for both industrial and commercial projects where safety, performance, and compliance with international standards are paramount.
Yes, we offer custom sizes for ANSI B16.5 Class 300 Flanges to meet specific project needs. Our team at Rached Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@rachedflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
