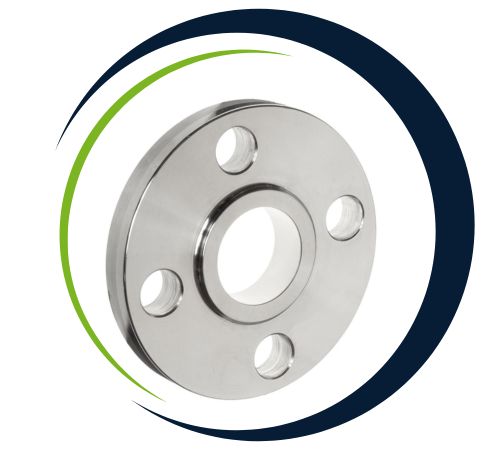

Rached Flanges is a reputable manufacturer and supplier of high-performance industrial flanges, proudly based in Tunis, Tunisia, and catering to demanding sectors around the globe. The company focuses on producing Hastelloy Threaded Flanges, which are meticulously engineered to meet international standards, ensuring exceptional corrosion resistance, strength, and reliability. With state-of-the-art production facilities, a team of skilled technicians, and a commitment to rigorous quality control, Rached Flanges provides flanges that boast precise dimensions and robust material integrity. These Hastelloy Threaded Flanges are specifically designed for high-pressure, high-temperature, and chemically aggressive environments, offering leak-proof connections and straightforward installation in critical piping systems used across the chemical, petrochemical, oil and gas, and power generation industries.
Manufactured from nickel-molybdenum-chromium alloys, these flanges have controlled amounts of iron and tungsten added to boost their corrosion and oxidation resistance. They showcase excellent tensile and yield strength, outstanding fatigue and creep resistance, and remarkable toughness even under high-pressure and high-temperature conditions. Thanks to their threaded design, welding is unnecessary, allowing for safe and reliable installation in corrosive and aggressive settings while ensuring mechanical integrity and leak-free performance.
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Grades | Hastelloy c276, b2, x, c22 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Rached Flanges, a leading supplier in Tunis, Tunisia, offers an extensive selection of Hastelloy Threaded Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Hastelloy threaded flanges are commonly applied where corrosion resistance and strength are needed. Common applications include the chemical process industry, oil and gas, power generation, and the pharmaceutical sector. Hastelloy threaded flanges are suitable for use with hazardous substances like acids, chlorides and alkalis in reactors, heat exchangers, and pressure vessels. Their pitting, stress corrosion and high ambient temperature resistance qualifies them for demanding conditions such as marine, wind and aerospace applications Hastelloy threaded flanges are utilized in equipment specialization where necessary that postpones and performance.
| ASME/ANSI B 16.5 | Threaded Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Threaded Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Hubbed Threaded Flange |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Threaded Hubbed Threaded, |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Threaded Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Threaded Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
| Hastelloy C276 | 2.4819 | N10276 | NW 0276 | ХН65МВУ | NiMo16Cr15W | ЭП760 |
| Hastelloy C22 | 2.4602 | N06022 | NW 6022 | – | NiCr21Mo14W | – |
| Hastelloy B2 | 2.4617 | N10665 | – | – | – | – |
Yes, we offer custom sizes for Hastelloy Threaded Flanges to meet specific project needs. Our team at Rached Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@rachedflanges.com.
Hastelloy Threaded Flanges find their place in industries that demand corrosion-resistant, high-strength, and low-maintenance piping solutions. Common applications include chemical processing plants, petrochemical facilities, oil and gas installations, and offshore platforms. They are perfect for connecting pipes, valves, and equipment in tight spaces where welding might be impractical or risky. The blend of mechanical strength, corrosion resistance, and ease of installation guarantees safe, long-lasting, and dependable performance in challenging and demanding industrial environments.
