Rached Flanges, based in Tunis, Tunisia, stands out as a top manufacturer and supplier of premium SS400 flanges. With a reputation for precision engineering and strict quality standards, the company provides flanges that guarantee dependable performance across various industrial applications. The SS400 flanges from Rached Flanges are crafted to offer remarkable strength, durability, and wear resistance, making them perfect for high-pressure and high-temperature settings. Catering to sectors like construction, oil and gas, chemicals, and power generation, Rached Flanges merges cutting-edge manufacturing methods with thorough quality checks to deliver flanges that align with international standards and meet customer needs.
Rached Flanges’ SS400 flanges are constructed from SS400 carbon steel, celebrated for its superb mix of strength, ductility, and toughness. This material typically includes 0.17–0.20% carbon, 0.35% silicon, and 1.40% manganese, which contribute to its excellent weldability and formability. In terms of mechanical properties, SS400 flanges showcase a tensile strength ranging from 400–510 MPa, a yield strength of 245 MPa, and an elongation of 20% or more. These characteristics ensure reliable performance under stress, impact, and moderate corrosion, making SS400 flanges both durable and cost-effective for a variety of structural and industrial piping needs.

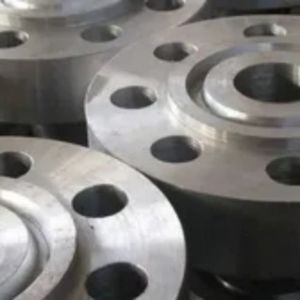

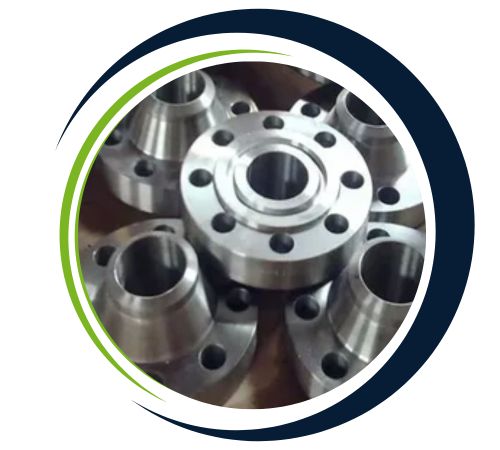

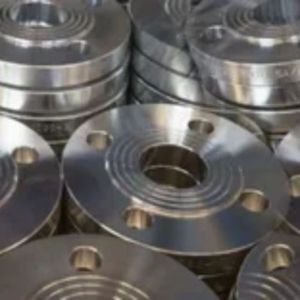

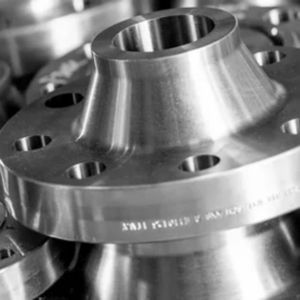

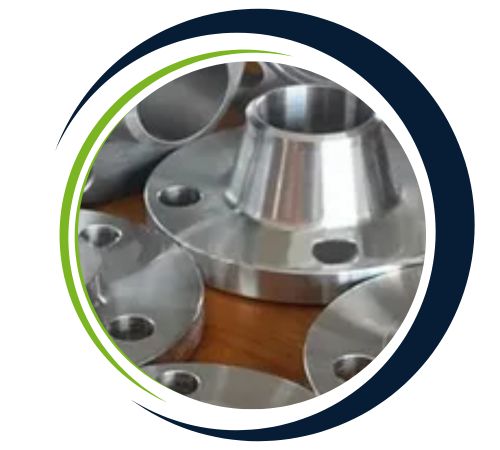

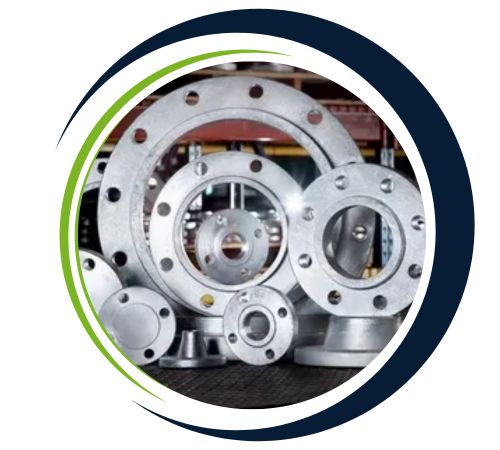

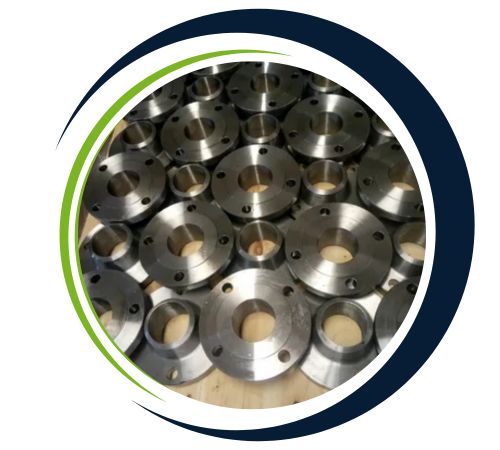

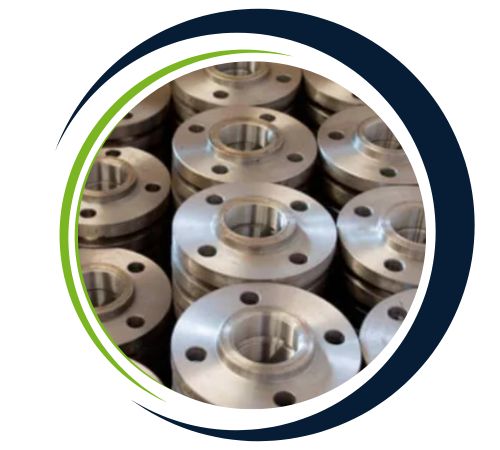

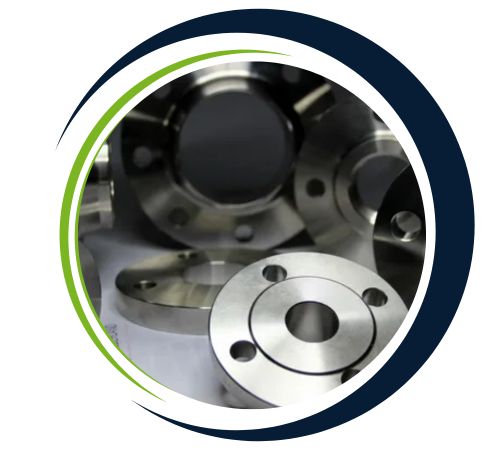

Rached Flanges, a leading supplier in Tunis, Tunisia, offers an extensive selection of SS400 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Specifications | ASTM SS400 and ASME SS400 |
|---|---|
| ASME B16.5 Carbon Steel SS400 Flanges size range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Carbon Steel SS400 Flanges Standards | ANSI/ASME B16.5, B16.48, BS4504, B16.47 Series A & B, EN-1092, BS 10, DIN, ASME Flanges, ANSI Flanges, DIN Flanges, BS Flanges, GOST Flanges,EN Flanges |
| Carbon Steel SS400 Flanges Standard DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| Carbon Steel SS400 Flanges Standard ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Carbon Steel SS400 Flanges Standard UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Carbon Steel SS400 Flanges Standard JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| Carbon Steel SS400 Flanges Standard EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Forged / Threaded / Screwed / Plate |
| Flange supporting material | Gasket, Ring Joint, Flange Bolts |
| Carbon Steel SS400 Pipe Flanges Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production technique |
|
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF), Large Male-Female (LMF), Flat Face (FF), Lap-Joint Face (LJF), Male-Female (SMF), Small Tongue & Groove, Large Tongue & Groove |
| Most common types of Carbon Steel SS400 Flanges |
|
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Carbon Steel SS400 Flanges Threaded Flanges, Socketweld Flanges, Slip-On Flanges, Blind Flanges, Weld Neck Flanges |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Specialized manufacturer of |
|
|
Element |
Weight % |
|
Carbon |
0.08 – 0.15 |
|
Silicon |
0.15 – 0.50 |
|
Manganese |
0.30 – 0.60 |
|
Phosphorus |
0.025 max * |
|
Sulphur |
0.025 max * |
|
Molybdenum |
0.90 – 1.10 |
|
Chromium |
2.00 – 2.50 |
|
Nickel |
0.5 max |
Property | Values |
Ultimate Tensile Strength * | 95 min Ksi (655 Mpa) |
0.2 % Yield Strength * | 75 min Ksi (517 Mpa) |
Elongation * | 17 % min |
Reduction of Area * | 35 % min |
Charpy Impact Toughness | 42 mean/ 33 min J at –18o C |
Hardness | 197 – 237 BHN (75 Ksi min) |
SS400 flanges find extensive use in industries that demand reliable, durable, and budget-friendly piping connections. They are commonly applied in construction, oil and gas pipelines, petrochemical facilities, water treatment systems, and power generation plants. These flanges are particularly suited for low-to-medium pressure operations where structural integrity and basic corrosion resistance are crucial. Additionally, SS400 flanges are utilized in machinery, structural steel frameworks, and various industrial applications, proving their versatility and effectiveness in meeting diverse operational requirements.
Yes, we offer custom sizes for SS400 Flanges to meet specific project needs. Our team at Rached Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@rachedflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
