Rached Flanges is a well-respected manufacturer and supplier located in Tunis, Tunisia, focusing on high-quality Titanium Flat Flanges for various industrial piping systems. With state-of-the-art manufacturing facilities and a talented technical team, the company crafts precision-engineered flanges that meet international standards and rigorous quality benchmarks. Rached Flanges prioritizes material excellence, dimensional accuracy, and reliable performance even in tough operating conditions. Catering to industries like oil and gas, chemical processing, marine, power generation, and desalination, the company has built a reputation for dependable products, competitive pricing, prompt deliveries, and robust customer support worldwide.

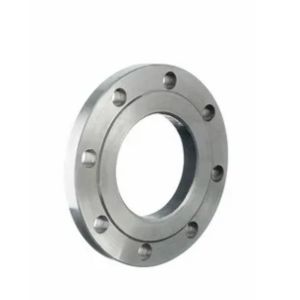

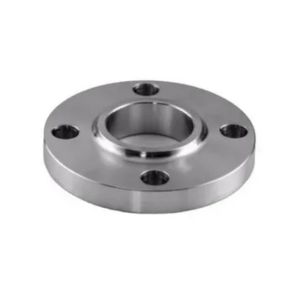

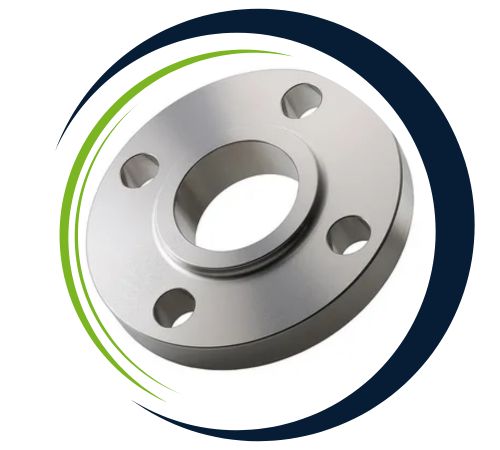

Titanium Flat Flanges are crafted from commercially pure titanium or titanium alloys, typically Grade 2 or Grade 5. This composition provides outstanding resistance to corrosion, oxidation, and harsh chemicals. On the mechanical side, these flanges boast high tensile strength, solid yield strength, and an impressive strength-to-weight ratio. They also demonstrate excellent fatigue resistance, ductility, and toughness while remaining stable under high temperature and pressure conditions. Additionally, Titanium Flat Flanges feature low thermal expansion and strong structural integrity, making them ideal for long-term use in demanding industrial settings where reliability and safety are paramount.
| Product Name | Titanium Flat Flanges |
|---|---|
| Size Range | 1/2″ (15 NB) to 48″ (1200NB) |
| Class / Pressure Rating | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standards / Dimensions | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, BS, GOST, MSS SP-44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605 |

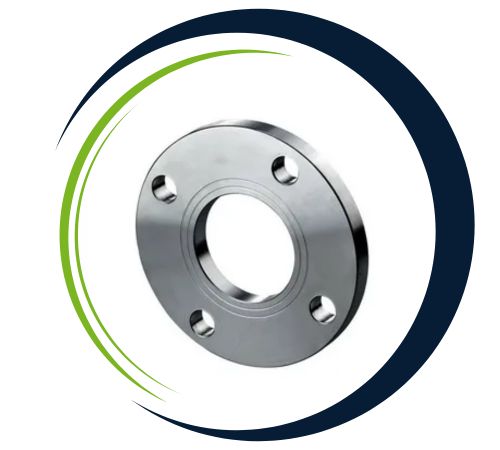

| Titanium Flat Face Flanges / Connection Type | Flat Face Flange (FF), Raised Face Flange (RF), Ring Joint Flange (RTJ), Lap Joint Flange, Male and Female Flange (M&F), Large and Small Tongue-and-Groove Flange (T&G) |
| Dimensions | ANSI B16.5, ANSI B16.47 Series A & B, ASA, API-605, MSS SP44, AWWA, Custom Drawings |
| Custom Design | As per your drawing | AS, BS, ANSI, DIN, JIS | Equal and Reducing Configurations |
| Material Test Certificates (MTC) | As per EN 10204 3.2 and EN 10204 3.1, Test Certificates certifying NACE MR0175, NACE MR0103 |
| Test Certificates | 100% Radiography Test Report, EN 10204/3.1B, Raw Materials Certificate, Third Party Inspection Report, etc |
| Tests | Hydrostatic testing machine, Direct-reading Spectrograph, UI trasonic flaw detector, X-ray detector, Magnetic particle detector |
| Equipment / Machines | Press machine, Pushing Machine, Bending machine, Sand-blasting machine, electric bevelling machine, etc. |
Rached Flanges, a leading supplier in Tunis, Tunisia, offers an extensive selection of Titanium Flat Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Titanium Flat Flanges are extensively utilized in piping systems where corrosion resistance, strength, and ease of installation are crucial. You’ll find them in chemical and petrochemical plants, offshore and onshore oil and gas facilities, marine and shipbuilding sectors, desalination plants, and heat exchangers. Their flat face design guarantees reliable sealing in low to moderate pressure systems. These flanges are also favored for their lightweight yet robust nature, making them a go-to choice for industries that require both durability and efficiency in their operations.
| STANDARD | UNS | WERKSTOFF NR. |

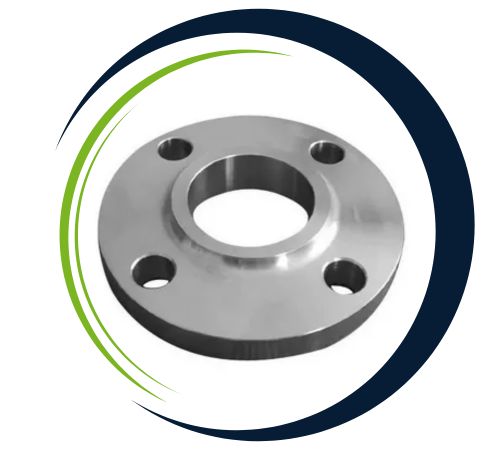

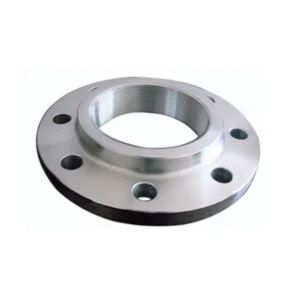

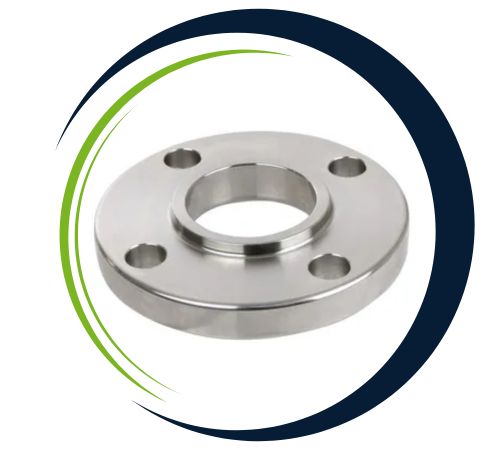

| Titanium Gr 2 | R50400 | 3.7035 |

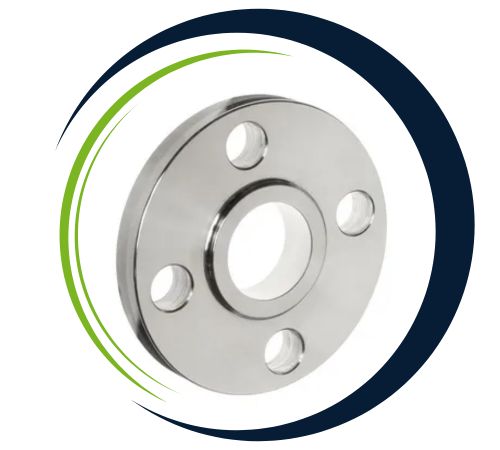

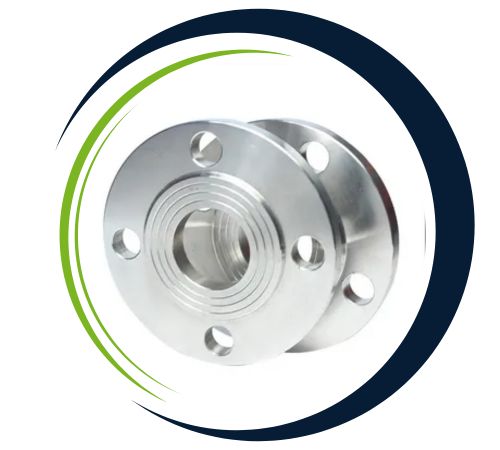

| Titanium Gr 5 | R56400 | 3.7165 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 1 | .08 Max | .03 Max | .18 Max | .015 Max | Bal | .20 Max |
| Titanium Grade 4 | .08 Max | .05 Max | .40 Max | .015 Max | Bal | .50 Max |
| Titanium Grade 7 | .08 Max | .03 Max | .25 Max | .015 Max | Bal | .30 Max |
| Titanium Grade 9 | .08 Max | .03 Max | .15 Max | .015 Max | – | .25 Max |
| Titanium Grade 12 | .08 Max | .03 Max | .25 Max | 0.15 Max | – | .30 Max |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 4.5 G/Cm3 | 1665 °C (3030 °F) | Psi – 39900 , MPa – 275 | Psi – 49900 , MPa – 344 | 20 % |
| 4.43 G/Cm3 | 1632 °C (2970 °F) | Psi – 128000 , MPa – 880 | Psi – 138000 , MPa – 950 | 14 % |
Yes, we offer custom sizes for Titanium Flat Flanges to meet specific project needs. Our team at Rached Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@rachedflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
